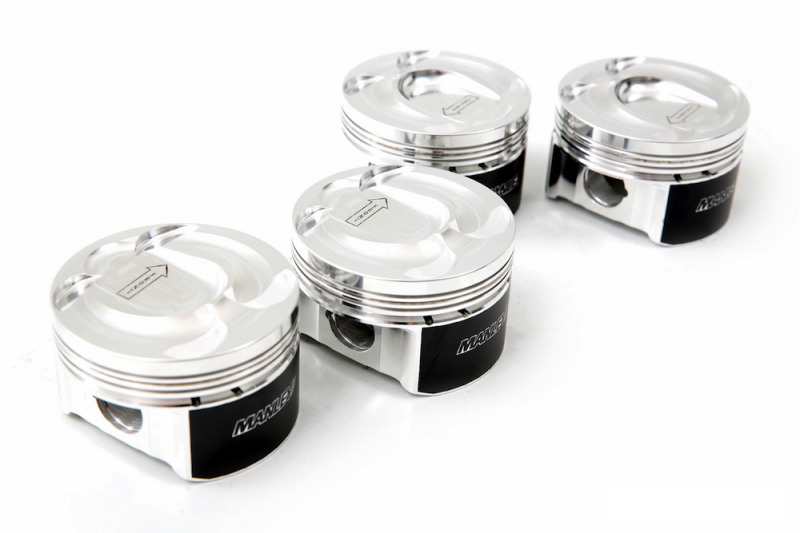

Manley 636000CE-4 Extreme Duty Series Ford 2.0L EcoBoost Pistons -7.3cc Dish, 87.5mm Bore

MAN-63600CE-4
Includes Piston Rings
Was: $660.00
Sale: $627.00
Save: 5%
Save: $33.00
Qty:
Free Shipping!

Description

 Compression Ratio: 9.3:1
  • 2618 High Strength Material, Lightweight Design
  • Offset Wrist Pin Location for Quiet Startups - Mimics OEM Design
  • Perfect Ring Groove to Skirt Squareness
  • Pressure Balance Groove
  • Extreme Duty 9310 Alloy .210" Wall Wrist Pins included with Round Wire Locks
  • Will accommodate +1mm Oversize Valves
  • Premium Steel Top Ring Set Included

Specifications

Part Number  636000C-4
Bore  87.5mm / 3.445"
Dish / Dome Volume  -7.3cc Dish
Compression Height  1.291"
Stroke 83mm / 3.268"
Rod Length  6.136"
Wrist Pin  .886" x 2.250" x .210" Wall
Wrist Pin Material  9310 Endurance Alloy
Piston Weight  379 grams
Included Piston Ring Set  46875-4



Details

  • MAN-63600CE-4
  • MAN-63600CE-4
  • Manley
  • New

Shipping Information

  • Item Requires Shipping
  • 8.0 lbs.
  • W10.0000” x H10.0000” x L10.0000”
  • Free Shipping!
