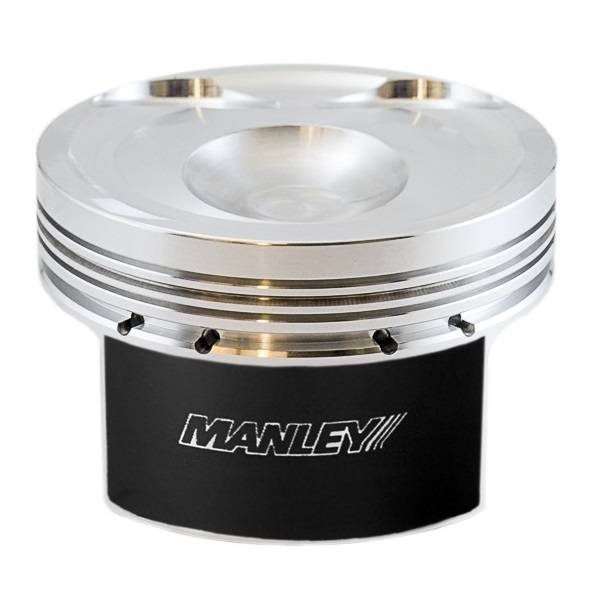

Manley 594910C-6 Platinum Series Ford 3.5L EcoBoost Pistons -0.5cc Dome, 3.652" Bore

10:1 Compression Ratio
Pricing: $680.00
Free Shipping!


 Compression Ratio: 10.0:1
  • 2618 High Strength Material, Lightweight Design
  • Offset Wrist Pin Location for Quiet Startups - Mimics OEM Design
  • Perfect Ring Groove to Skirt Squareness
  • Pressure Balance Groove
  • Premium 4130 Chrome Moly .180" Wall Wrist Pins included with Round Wire Locks
  • Will accommodate +1mm Oversize Valves
  • 1.2mm x 1.2mm x 2.5mm Ring Stack


Part Number  594910C-6
Bore  3.652"
Dish / Dome Volume  -0.5cc Dome
Compression Height  1.239"
Stroke 3.413"
Rod Length  6.011"
Wrist Pin  .866" x 2.500" x .180" Wall
Wrist Pin Material  4130 Chrome Moly
Piston Weight  N/A
Ring Stack  1.2mm x 1.2mm x 2.5mm
Piston Ring Set (Sold Separately)  46652ST-6



  • MAN-594910C-6
  • MAN-594910C-6
  • Manley
  • New


Shipping Information

  • Item Requires Shipping
  • 8.0 lbs.
  • W10.0000” x H10.0000” x L10.0000”
  • Free Shipping!
