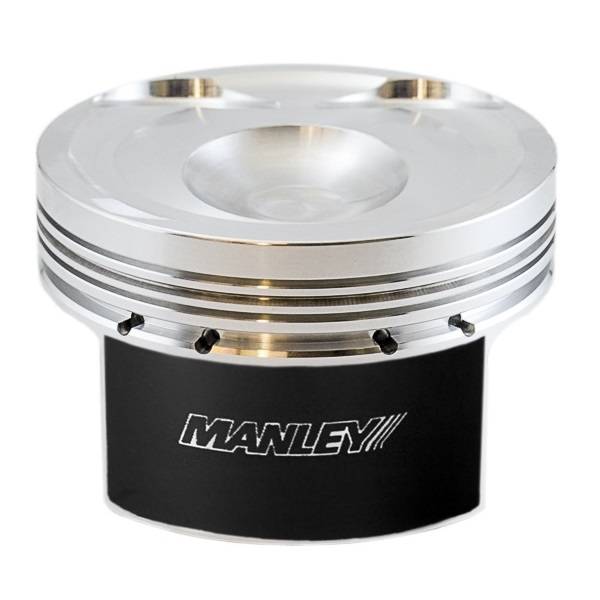

Manley 594810C-6 Platinum Series Ford 3.5L EcoBoost Pistons -8.5cc Dish, 3.652" Bore

MAN-594810C-6
Pricing: $560.00
Qty:
Free Shipping!

Description

 Compression Ratio: 9.0:1
  • 2618 High Strength Material, Lightweight Design
  • Offset Wrist Pin Location for Quiet Startups - Mimics OEM Design
  • Perfect Ring Groove to Skirt Squareness
  • Pressure Balance Groove
  • Premium 4130 Chrome Moly .180" Wall Wrist Pins included with Round Wire Locks
  • Will accommodate +1mm Oversize Valves
  • 1.2mm x 1.2mm x 2.5mm Ring Stack

Specifications

Part Number  594810C-6
Bore  3.652"
Dish / Dome Volume  -8.5cc Dish
Compression Height  1.239"
Stroke 3.413"
Rod Length  6.011"
Wrist Pin  .866" x 2.500" x .180" Wall
Wrist Pin Material  4130 Chrome Moly
Piston Weight  N/A
Ring Stack  1.2mm x 1.2mm x 2.5mm
Piston Ring Set (Sold Separately)  46652ST-6



Details

  • MAN-594810C-6
  • MAN-594810C-6
  • Manley
  • New

Shipping Information

  • Item Requires Shipping
  • 8.0 lbs.
  • W10.0000” x H10.0000” x L10.0000”
  • Free Shipping!
