MHS 4.6L / 5.4L 2V / 4V Deluxe Camshaft Degree Kit

Pricing: $79.00


Modular Head Shop 4.6L / 5.4L 2V Deluxe Camshaft Degree Kit

This camshaft degree kit is more of a supplemental kit with the hard to find Ford Modular 2V / 4V cam degree parts. In addition to the parts that are supplied in this kit, you will also need basic cam degree tools such as a degree wheel, crankshaft socket, dial indicator and TDC piston stop.

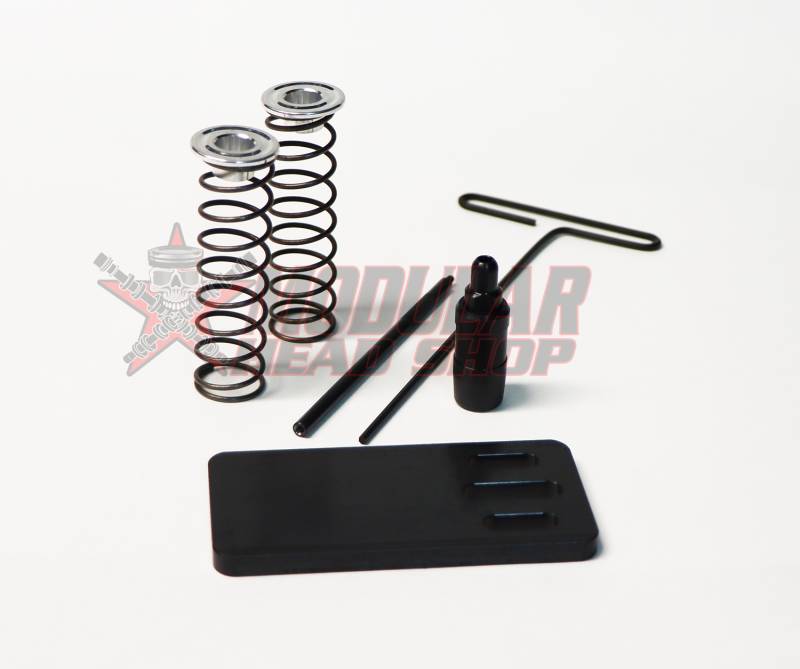

  • Steel Plate for mounting magnetic base dial indicator
  • Adjustable Lash Adjuster - Fits 2V, 3V and Traditional 4V Engines.
    • Does not fit Coyote or GT500 Intake Side
  • Extended length allen key for for adjustments
  • Dial Indicator Extension

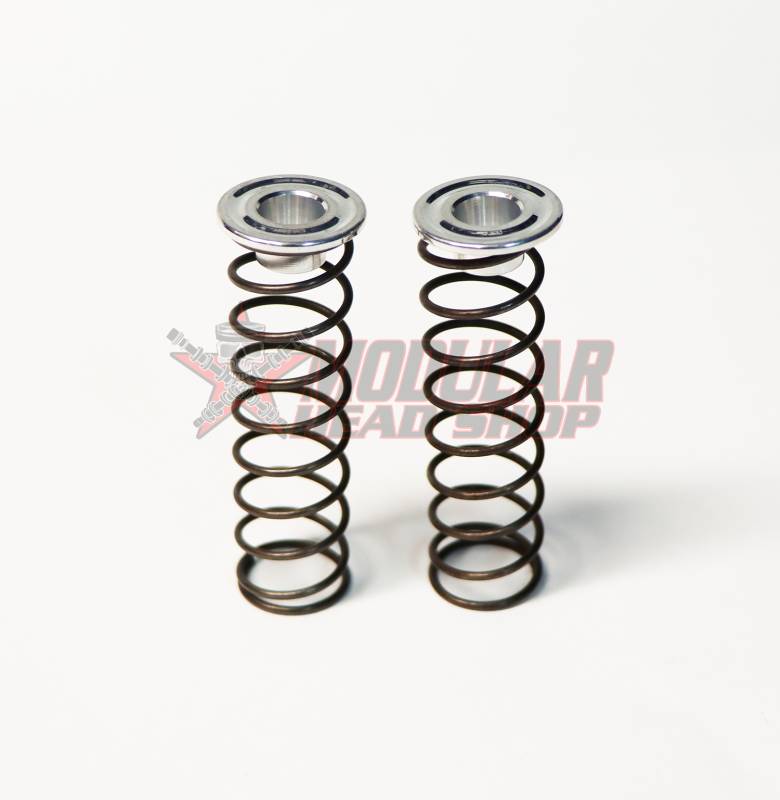

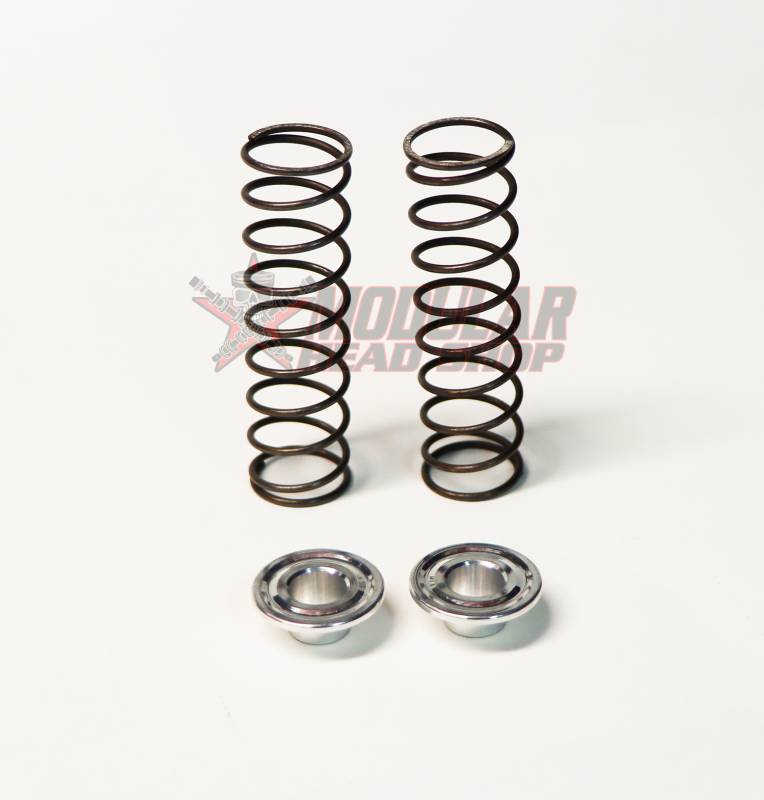

  • (2) MHS Custom Aluminum Retainers for Checker Springs
  • (2) Checker Springs

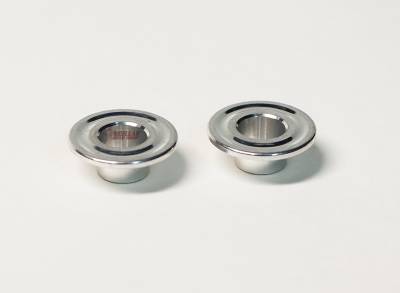

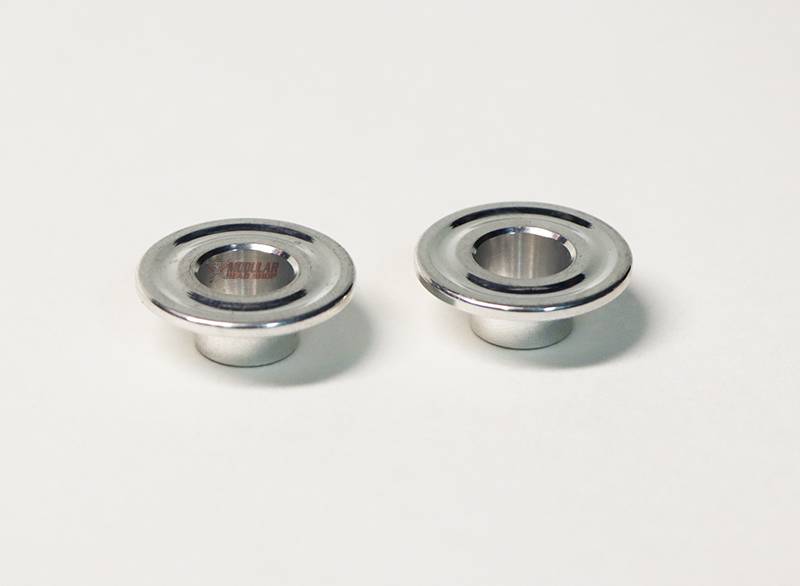

The dial indicator extension in this kit is machined on both ends for a 4-42 thread, unlike some extensions that are only threaded on one end. This allows you to remove the ball from your dial indicator, install our extension, then install the ball on the other end of our extension. The MHS custom aluminum retainers are machined for standard 4.6L 2V / 4V 7mm Stem, 7 Degree locks. These retainers are oversize and have an Outer Diameter of 1.000" along with a machined groove for the dial indicator to sit. This helps the dial indicator tip from moving as the valve is traveling up and down.

Suggestions for lash adjuster preload is .002" at the base circle. Loosen the lash adjuster until the follower can wiggle. Tighten up while watching the dial indicator. Once the gauge starts to move you are at zero lash. Add .001" - .002" and start degreeing.




Shipping Information

  • Item Requires Shipping
  • 3.0 lbs.
