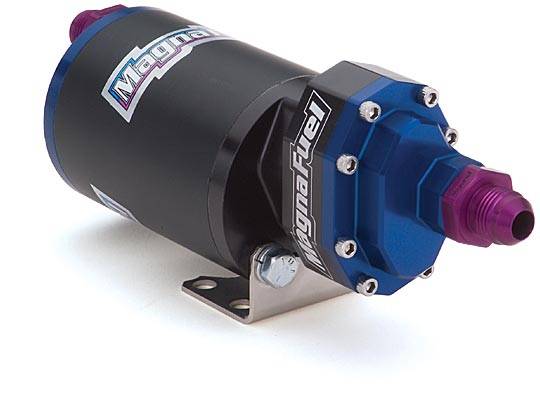

Magnafuel MP-4303 ProTuner 750 Electric Inline Fuel Pump

MRF-MP-4303

Description

MagnaFuel ProTuner 750 - Supports up to 2000 HP

One-piece design is more
        compact and light weight.

•Ideal for street muscle cars
•Quiet operation
•Self priming
•Continuous duty
•No pump shaft seals, no leaks
•Pump body CNC machined aircraft aluminum
•High-torque custom motor with very low current draw.
Never requires stepdown
•More efficient than other motors
•Double support bearings
•Rebuildable to as-new condition
•Compact design fits in smaller spaces
•Smaller than competitive pumps, lower current draw, more powerful
•Hard anodized, long lasting finish
•Mounting bracket included
•Vertical or horizontal mount
•Polymer wear plates for smooth, quieter operation





Specifications



Model   ProTuner 750
Part Number    MP-4303
Horsepower Rating    2000 HP - N/A
Pressure   20 - 120 psi
Amps @ 12.5V   14 amps @  45 psi
Ports   -8 AN Inlet / -8 AN Outlet
Dimensions   7" Length, 3" Diameter
Weight   4.5lbs

*Horsepower Ratings are for Naturally Aspirated engines running gasoline. Actual Horsepower capability will depend on Power Adder type and Fuel type.

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H6.0000” x L6.0000”
  • Free Shipping!
