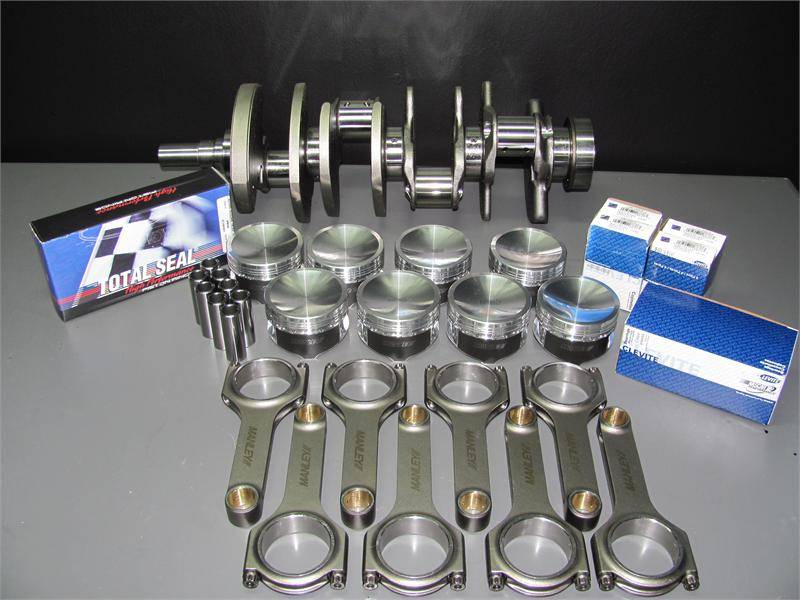

Modular Head Shop 1000 HP 5.0L Coyote Rotating Assembly - Boss 302 Forged Crankshaft, Manley 4340 H-Beam Rods and Manley Pistons

MHS-500013C
Includes Manley Exclusive Total Seal AP Steel Ring Set
Was: $2,169.00
Sale: $2,060.55
Save: 5%
Save: $108.45

Customize Your Item

- Select Bore -
 * required
- Select Piston Volume -
 * required
- Select Wrist Pins -
 * required
- Select Connecting Rods -
 * required
- Stud Crankshaft? -
 * required
- Balance Rotating Assembly? -
 * required
Qty:
Free Shipping!

Description


  • FRPP Boss 302 Forged Crankshaft
  • Manley Forged 4340 H-Beam Connecting Rods
  • Manley Forged 5.0L Coyote Pistons
    • Moly Coated Skirts
    • Intake and Exhaust Valve Reliefs for +1mm Valves
    • 4130 Chrome Moly Wrist Pins with Round Wire Locks
    • 1.2mm x 1.2mm x 3mm Ring Package
  • Manley / Total Seal AP Steel Ring Set
  • King XP Series Rod Bearings
  • King XP Series Main Bearings
Compression Ratios
   Piston Volume       57cc 4V Head
+6.75cc Dome 11.5:1
-2.5cc Flat Top 10.0:1
-12.0cc Dish 9.0:1

Options:

ARP 2000 Rod Bolts - Recommended for 800+ HP
Upgrade to Manley H-Tuff Rods - Recommend for 800+ HP - Includes ARP 2000 Bolts
Upgrade to 9310 Alloy Wrist Pins - Recommended for 800+ HP
*Stud  Crankshaft - Recommended for Blower Applications
*Includes 9/16" ARP Crankshaft Stud, Washer and Nut
*Only available with Balancing option

*Internal Balancing Available
Rods and Pistons Weight Matched to +/- 0.1g
Crankshaft Balanced to 0.2g Tolerance



Details

Shipping Information

  • Item Requires Shipping
  • 85.0 lbs.
  • W24.0000” x H24.0000” x L36.0000”
  • Free Shipping!
