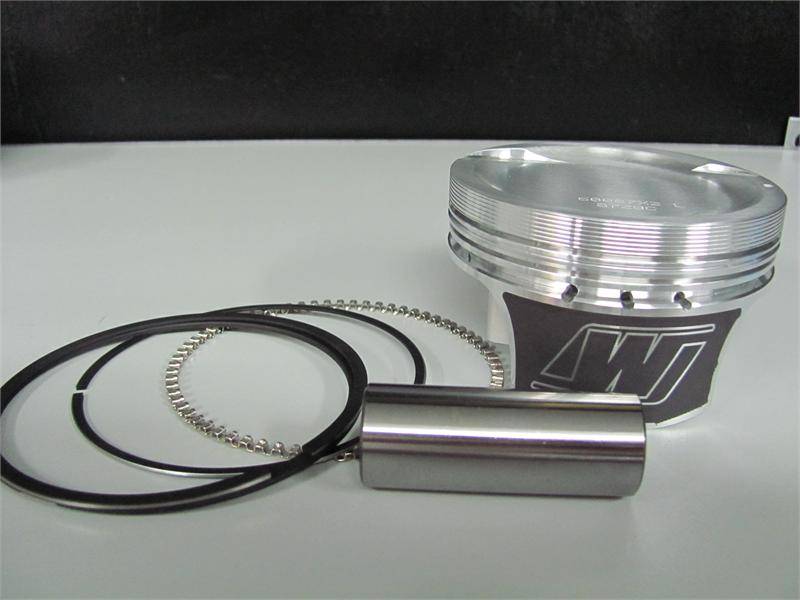

Wiseco K0091XS - 4.6L 2V TFS Piston / Ring Kit -13cc Dish, 3.552" Bore

Fits 4.6L Engines w/ TFS Twisted Wedge Heads. -13cc Dish , 3.552" Bore
Pricing: $845.59

Customize Your Item

- Select Wrist Pins -
 * required
Free Shipping!



We have worked directly with Wiseco to offer the absolute best shelf stocking Pistons available for the Ford Modular Engines. These Pistons are an In-Board Forging, Strutted Skirt design capable of handling lots of Boost and / or Nitrous. Some of their features are a .300" Down Top Ring, Thick Skirts and Struts and Wiseco Armour-Glide Skirt Coating. The best thing about this Piston Set is the Rings. These Pistons are supplied with Wiseco GNX Piston Ring Set which uses a Gas Nitrided Steel Top Ring and Napier 2nd Ring with a 3 Piece Oil Ring. The Steel Top Ring is capable of withstanding large amounts of Boost and / or Nitrous, while the Napier 2nd Ring helps with Oil Control. We have been testing these Pistons / Rings for quite some time now and they are the absolute best we have seen.

52100 Tool Steel .200" Wall Wrist Pins are available as an upgrade - Suggested for 800+ HP
For Applications over 1000 HP, we suggest contacting us for a custom set of Pistons.


Part Number  K0091XS
Bore  3.552"
Dish Volume  -13cc Dish
Compression Height  1.220"
Top Ring Down .300"
Valve Pockets  2V TFS Twisted Wedge
Wrist Pin  .866" x 2.250"
Wrist Pin Material  4130 Chrome Moly / 52100 Tool Steel Available
Piston Rings  3552GNX (Included)


Compression Ratios

       -13cc Dish

TFS 38cc  10.75:1
TFS 44cc   9.85:1
