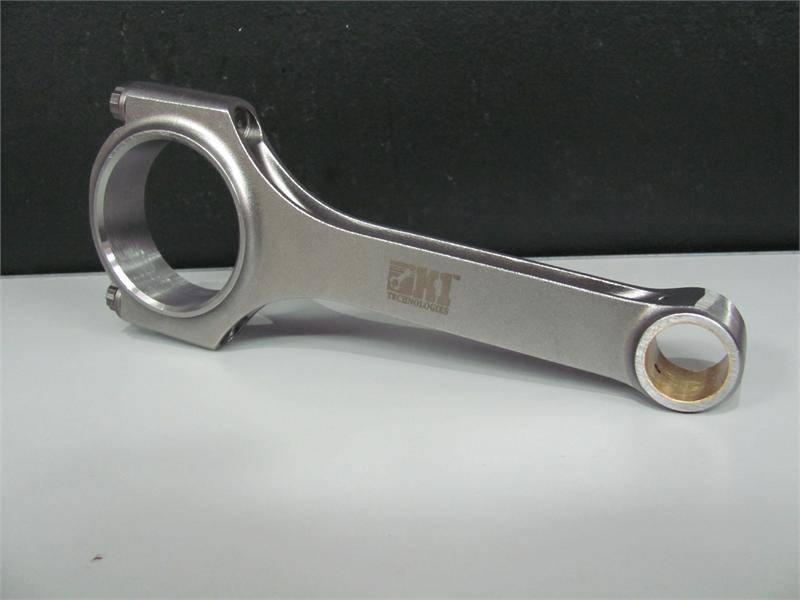

K1 Technologies 011AN17666 - Ford 5.4L / 5.8L H-Beam Connecting Rods

Comes with 7/16" ARP 2000 Rod Bolts - Strongest 5.4L / 5.8L Modular H-Beam Rods Available
Not Available
Pricing: $799.00



The New K1 Technologies Forged 4340 H-Beam Connecting Rods are the absolute strongest H-Beam Rods available for the Ford 5.4L / 5.8L Modular Engines. Unlike other H-Beams on the market, these K1 H-Beam Rods feature 7/16" ARP 2000 Rod Bolts. The 7/16" Rod Bolt makes these Rods much stronger than the other's available which only use a 3/8" Bolt. All K1 Technologies Connecting Rods are hand finshed and inspected in house at Wiseco / K1 Tech. This means consistent Big End and Pin End Bores for more consistent clearances. We highly recommend these connecting rods for anyone looking for a high quality, affordable H-Beam for applications up to 1200 HP.




Part Number  011AN17666
Application  Ford 5.4L Modular
Length   6.657"
Big End Bore   2.239"
Wrist Pin  .866"
Big End Width   .940"
Pin End Width   .965
Rod Bolts  7/16" ARP 2000
Gram Weight   634g




  • K1T-011AN17666
  • K1T-011AN17666
  • K1 Technologies
  • Temporarily Not Available
  • New


Shipping Information

  • Item Requires Shipping
  • 15.0 lbs.
  • W8.0000” x H6.0000” x L12.0000”
  • Free Shipping!
