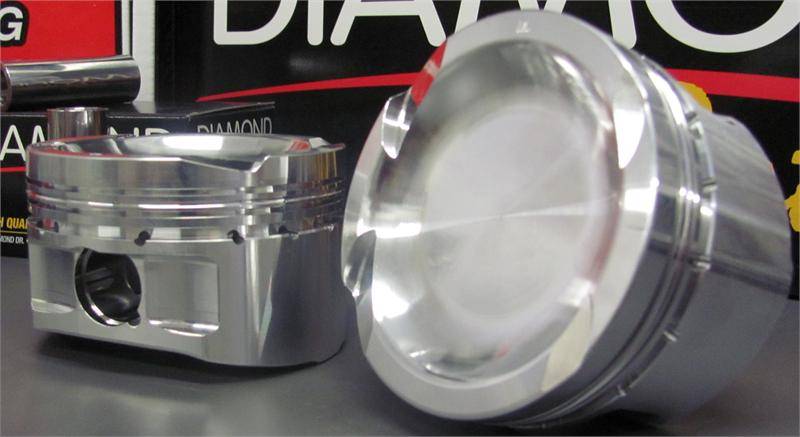

Custom Diamond 5.4L Specific Pistons, -11.5cc Dish - .020" Over Bore
DRP-C3000254
Includes 4130 Chrome Moly Wrist Pins and Double Spiro Locks.
Pricing:
$1,049.99
Description
- 2618 Alloy - Designed for Forced Induction and Nitrous Application
- Raised Compression Hieght for better Quench and Flame Travel
- Offset Wrist Pins for Quiet Operation
- Minimum .220" Underhead Thickness
- .275" Down Top Ring
- Premium 4130 Chrome Moly Wrist Pins Included - H-13 Pins Avaialble

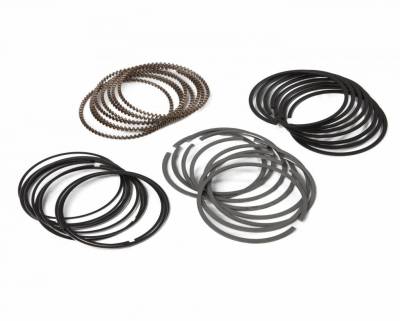

- 1.5mm x 1.5mm x 3mm Ring Stack
- Available with 2V, 3V or 4V Valve Reliefs - Will Clear +1mm Valves
Specifications
| Part Number | C3000254 |
| Bore | 3.572" |
| Stroke | 4.165" |
| Rod Length | 6.657" |
| Compression Height | 1.330" |
| Wrist Pin | .866" x 2.500" |
| Top Ring Down | .275" |
| Piston Material | 2618 Alloy |
| Piston Style | Dish |
| Volume | -11.5cc |
| Ring Stack | 1.5mm x 1.5mm x 3mm |
Compression Ratios
Compression Ratios are Calculated for a 4.165" Stroke,
.008" Deck Clearance and 3.630" Bore / .036" Thick Head Gasket
| 2V PI 42cc | 2V NPI / 3V 51cc | 4V 52cc |
| 12.2:1 | 10.8:1 | 10.6:1 |
Details
- DRP-C3000254
- DRP-C3000254
- Diamond Racing Products
- New
Categories
Shipping Information
- Item Requires Shipping
- 10.0 lbs.
- W12.0000” x H4.0000” x L18.0000”
- Free Shipping!
