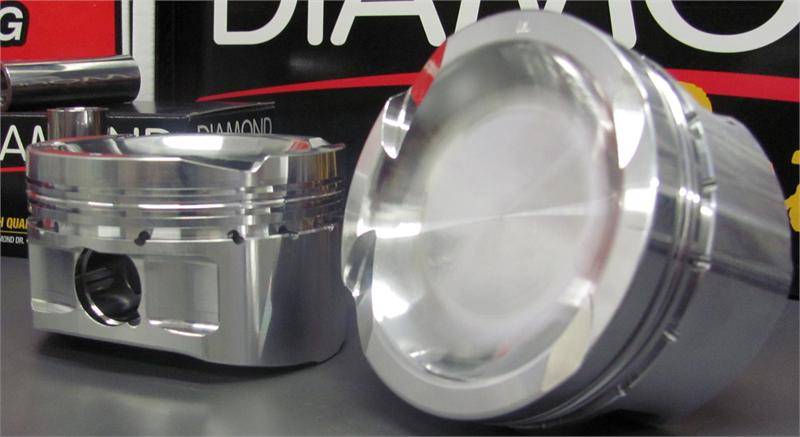

Custom Diamond 5.4L Specific Pistons, -2cc Dish - .020" Over Bore

(0) Reviews: Write first review
DRP-C3001854
Includes 4130 Chrome Moly Wrist Pins and Double Spiro Locks.
Pricing: $1,049.99

Customize Your Item

- Select Valve Reliefs -
 * required
- Select Wrist Pins -
 * required
- Select Piston Coating Options -
 * required
- Add Lateral Gas Ports -
 * required
Qty:
Free Shipping!

Description


  • 2618 Alloy - Designed for Forced Induction and Nitrous Application
  • Raised Compression Hieght for better Quench and Flame Travel
  • Offset Wrist Pins for Quiet Operation
  • Minimum .220" Underhead Thickness
  • .275" Down Top Ring
  • Premium 4130 Chrome Moly Wrist Pins Included - H-13 Pins Avaialble
  • 1.5mm x 1.5mm x 3mm Ring Stack
  • Available with 2V, 3V or 4V Valve Reliefs - Will Clear +1mm Valves



Specifications

Part Number  C3001854
Bore  3.572"
Stroke  4.165"
Rod Length  6.657"
Compression Height   1.330"
Wrist Pin  .866" x 2.500"
Top Ring Down  .275"
Piston Material  2618 Alloy
Piston Style  Dish
Volume  -2.0cc
Ring Stack  1.5mm x 1.5mm x 3mm



Compression Ratios

Compression Ratios are Calculated for a 4.165" Stroke,
.008" Deck Clearance and 3.630" Bore / .036" Thick Head Gasket

 2V PI 42cc    2V NPI / 3V 51cc    4V 52cc
14.3:1  12.3:1  12.1:1



Details

Categories

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
  • W12.0000” x H4.0000” x L18.0000”
  • Free Shipping!
