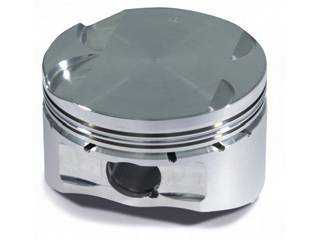

Diamond 4.6L / 5.4L -5.2cc Dish Pistons .020" Over Bore

(0) Reviews: Write first review
DRP-30011
3.572" .020 Over Bore Piston Set. -5.2cc Dish Includes Wrist Pins and Spiro Locks. Available with or without valve reliefs.
Pricing: $874.99

Customize Your Item

- Select Valve Reliefs -
 * required
- Select Wrist Pins -
 * required
- Select Piston Coating Options -
 * required
- Add Lateral Gas Ports -
 * required
Qty:
Free Shipping!

Description


  • 2618 Alloy-Designed for Forced Induction and Nitrous Applications
  • Offset Wrist Pins for Quiet Operation
  • 3.572 Bore / 1.220" Compression Height
  • Minimum .220 Underhead Thickness
  • .275 Down Top Ring
  • Premium 4130 Wrist Pins Included
  • 1.5mm x 1.5mm x 3mm Ring Stack
  • Available with 2V or 4V Valve Reliefs - Will clear +1mm Valves



Compression Ratios



  2V PI 42cc   2V NPI 51cc    4V 52cc
 4.6L  -5.2cc Dish  11.52:1  10.05:1    9.91:1
