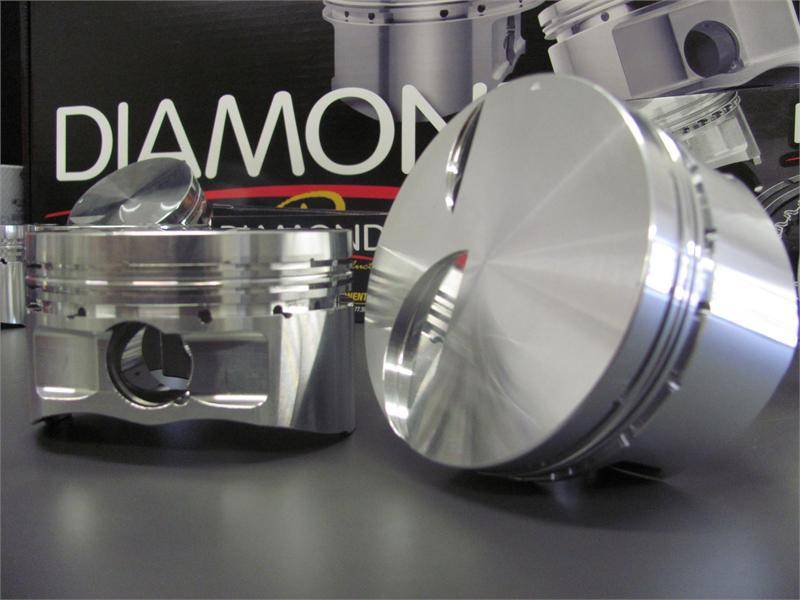

Diamond 4.6L 2V Street / Strip Flat Top Pistons - Big Bore 3.700"

(0) Reviews: Write first review
DRP-30024
4.6L 2V PI 3.700" Big Bore Pistons. Includes 4130 Chrome Moly Wrist Pins and Spiro Locks
Pricing: $874.99

Customize Your Item

- Select Wrist Pins -
 * required
- Select Piston Coating Options -
 * required
- Add Lateral Gas Ports -
 * required
Qty:
Free Shipping!

Description

      2V PI Big Bore Compression Ratio: 13.32:1

  • 2618 Alloy-Designed for Forced Induction and Nitrous Applications
  • Offset Wrist Pins for Quiet Operation
  • 3.700" Bore / 1.230" Compression Height
  • Minimum .220 Underhead Thickness
  • .275 Down Top Ring
  • Premium 4130 Wrist Pins Included
  • 1.5mm x 1.5mm x 3mm Ring Stack
  • .151" Intake / .050" Exhaust Valve Reliefs Standard



Details

Categories

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
  • W12.0000” x H4.0000” x L18.0000”
  • Free Shipping!
