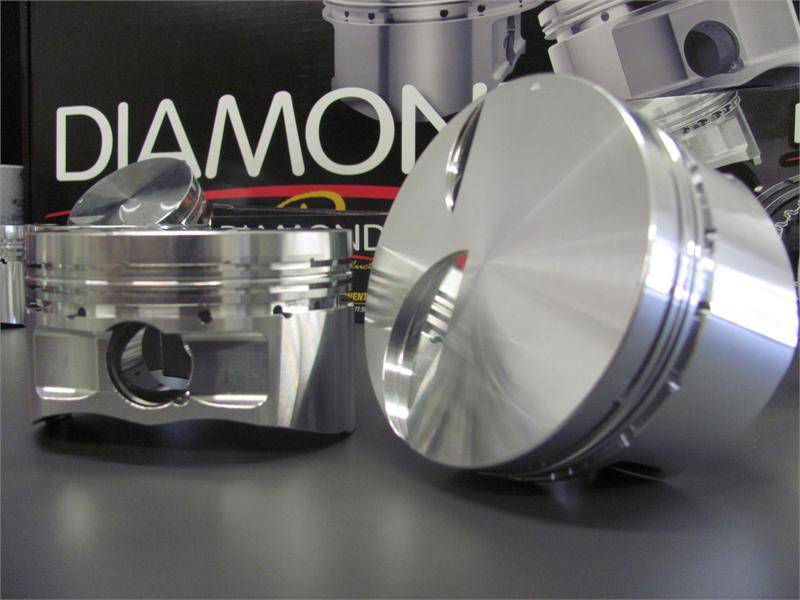

Diamond 4.6L 2V Street / Strip Flat Top Pistons - .020" Over Bore
4.6L 2V PI Specific Piston. Includes 4130 Chrome Moly Wrist Pins and Spiro Locks
2V PI Compression Ratio: 12.81:1
- 2618 Alloy-Designed for Forced Induction and Nitrous Applications
- Offset Wrist Pins for Quiet Operation
- 3.572" Bore / 1.230" Compression Height
- Minimum .220 Underhead Thickness
- .275 Down Top Ring
- Premium 4130 Wrist Pins Included
- 1.5mm x 1.5mm x 3mm Ring Stack
- .151" Intake/ .050" Exhaust Valve Reliefs Standard
- Diamond Racing Products
- Item Requires Shipping
- 10.0 lbs.
- W12.0000” x H4.0000” x L18.0000”
