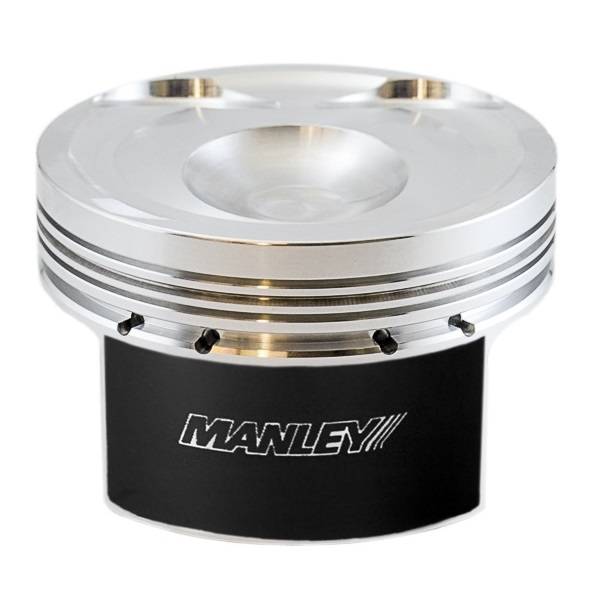

Manley 594820CE-6 Extreme Duty Series Ford 3.5L EcoBoost Pistons -8.5cc Dish, 3.662" Bore

MAN-594820CE-6
9:1 Compression Ratio
Pricing: $820.00
Qty:
Free Shipping!

Description

 Compression Ratio: 9.0:1
  • 2618 High Strength Material, Lightweight Design
  • Offset Wrist Pin Location for Quiet Startups - Mimics OEM Design
  • Perfect Ring Groove to Skirt Squareness
  • Pressure Balance Groove
  • Extreme Duty 9310 Alloy .210" Wall Wrist Pins included with Round Wire Locks
  • Will accommodate +1mm Oversize Valves
  • 1.2mm x 1.2mm x 2.5mm Ring Stack

Specifications

Part Number  594820CE-6
Bore  3.662"
Dish / Dome Volume  -8.5cc Dish
Compression Height  1.239"
Stroke 3.413"
Rod Length  6.011"
Wrist Pin  .866" x 2.500" x .210" Wall
Wrist Pin Material  9310 Endurance Alloy
Piston Weight  N/A
Ring Stack  1.2mm x 1.2mm x 2.5mm
Piston Ring Set (Sold Separately)  46642ST-6
