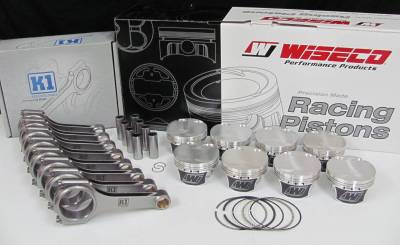

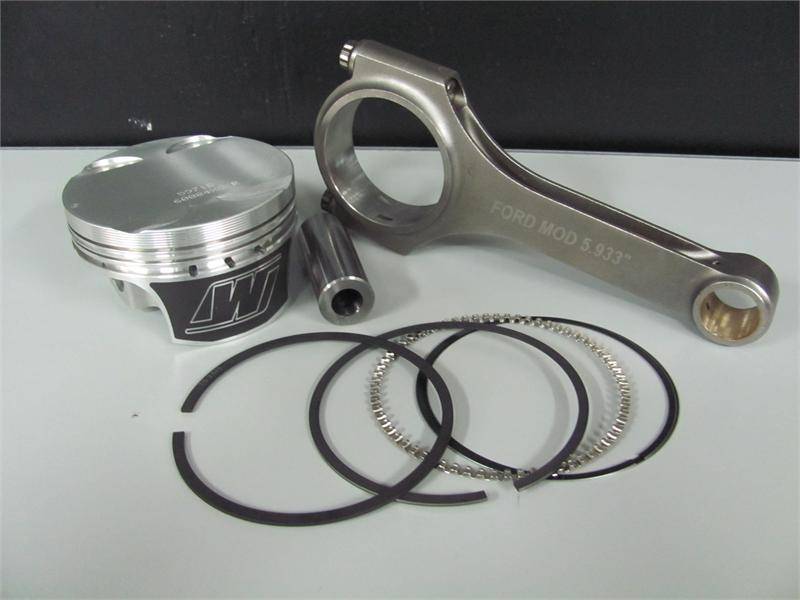

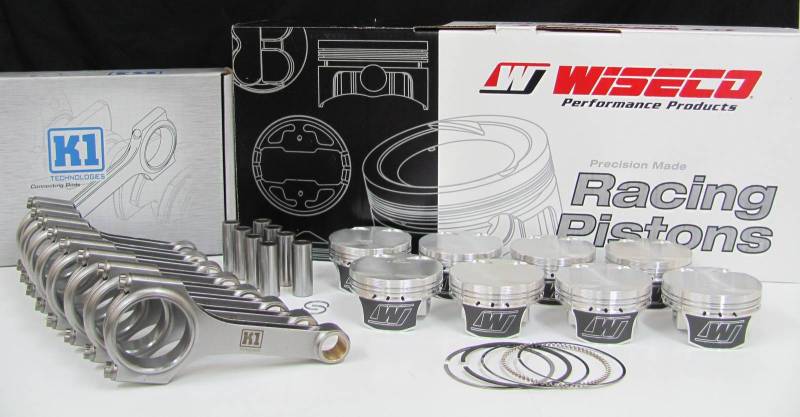

5.0L Coyote Wiseco Pistons / K1 H-Beam Connecting Rod Combo

EXC-13310
Comes with Boost / Nitrous Compatible Piston Ring Set and K1 Rods with 7/16" ARP 2000 Rod Bolts. Strongest Shelf Stocking Rod and Piston Combo available for the 5.0L Coyote Engine
Pricing: $1,380.00

Customize Your Item

- Select Bore -
 * required
- Select Piston Volume -
 * required
- Select Wrist Pins -
 * required
- Add Rod Bearings? -
 * required
Qty:

Description

The Wiseco Piston / K1 H-Beam Piston and Rod Combo is the Strongest Shelf Stocking Combo available. Capable of Handling well over 1000 HP with just a Wrist Pin Upgrade. The Wiseco 5.0L Coyote Pistons feature super thick Skirts and Struts and a .300" Down Top Ring for added strength, as well as Wiseco's Armour Glide Skirt Coating. The K1 H-Beam Rods feature 7/16" ARP 2000 Rod Bolts and are the strongest H-Beam Rods available for the 4.6L Engines. This Kit also comes with Piston Rings. Wiseco GNX Ring Set uses a Steel Nitrided Top Ring and a Napier 2nd Ring and is able to handle boost pressures of over 50 PSI.
  • Wiseco Forged 2618 Alloy Piston
    • 5.0L Ti-VCT Specific Valve Reliefs
    • .300" Down Top Ring
    • Extra Thick Skirts and Struts
    • Pressure Balance Groove
    • Armour Glide Coated Skirts
    • 4130 Chrome Moly .173" Wall Pins
    • Wiseco GNX Ring Set w/ Steel Top Ring and Napier 2nd Ring
  • K1 Forged 4340 H-Beam Connecting Rods
    • Strongest H-Beam Available
    • Comes Standard with 7/16" ARP 2000 Rod Bolts
Compression Ratios
  57cc
-8cc Dish  9.5::1
 -2cc Dish  10.5:1
 +2cc Dome  11.0:1

Options:
  • Upgrade to 52100 Tool Steel Wrist Pins
  • Add a Set of Clevite H-Series Rods Bearings
  • Add a Set of Calico Coated Clevite H-Series Rod Bearings
We also offer Internal Balancing. Send us your crankshaft and we will balance your entire assembly. Please call for details.

Details

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W14.0000” x H14.0000” x L28.0000”
