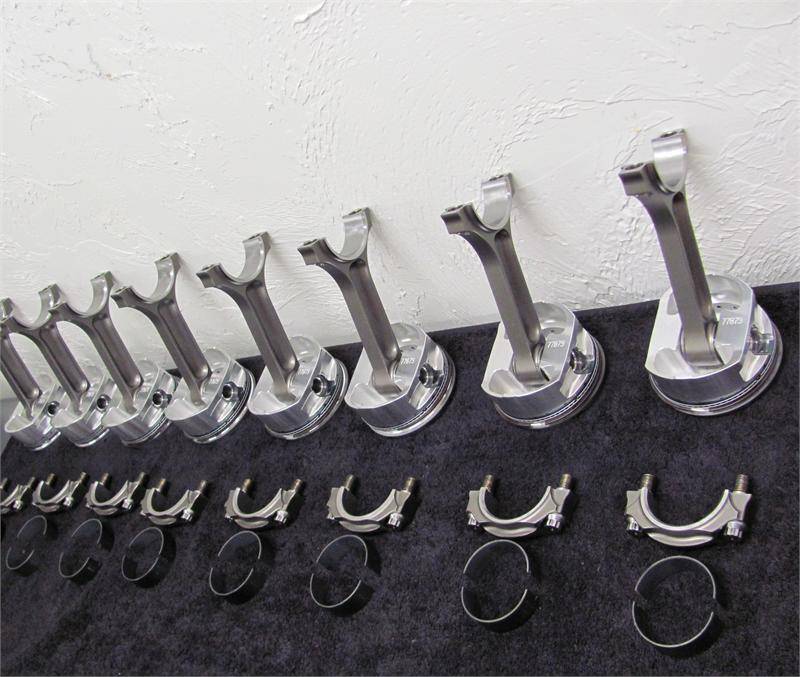

5.0L Coyote 1500 HP Diamond Pistons / Oliver Billet Connecting Rods Combo

EXC-13320
Includes H-13 Tool Steel .200" Wall Wrist Pins and Total Seal AP Steel Piston Ring Set. Everything you need for 1500 HP!
Pricing: $2,399.00

Customize Your Item

- Select Bore -
 * required
- Select Piston Volume -
 * required
- Optional Coatings -
 * required
- Add Rod Bearings? -
 * required
Qty:

Description

  • Diamond Forged 5.0L Coyote Pistons - Any Available Dish
    • Standard, .010", .020" or .030" Over Bore
    • .300" Down Top Ring for Big Boost / Nitrous
    • .075" Intake and Exhaust Valve Pocket for High Lift Camshafts
    • Trend Performance H-13 Tool Steel .200" Wall Wrist Pins
  • Total Seal AP Steel Chromium Nitrided Piston Ring Set
  • Oliver Billet Connecting Rods with ARP 2000 Bolts
Compression Ratios
                                             57cc
 +8.0cc Dome 11.5:1
 +5.0cc Dome  11.0:1
 +1.7cc Dome  10.0:1
-6.0cc Dish  9.5:1
-10.0cc Dish  9.0:1
-15.5cc Dish  8.5:1

Options
  • Add Moly Skirt Coatings
  • Add Ceramic Dome Coating
  • Add Double Diamond Coating - Hard Anodized and Moly Skirt
  • Add Clevite  H-Series Rod Bearings
  • Add Calico Coated Clevite H-Series Coating Rod Bearings
This Piston and Rod Kit for the 5.0L Coyote Engine is the Ultimate Kit for Engines making up to 1500 HP. This kit includes everything needed to safely make up to 1500 HP, including Heavy Duty Trend Performance .200" Wall H-13 Tool Steel Wrist Pins and a Total Seal AP Steel Piston Ring Set. Also recommended is the Double Diamond Coating. This Coating drastically increases the strength of the piston, especially under extremely high boost / large amounts of Nitrous.

The Pistons included in this kit are Made to Order. Please allow 2-3 Weeks for Delivery. Add 1 Extra Week if coatings are selected. Full Custom Pistons also available if you need something unique.

*We also offer Internal Balancing. Send us your Crankshaft and we can balance your entire assembly.

Details

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
