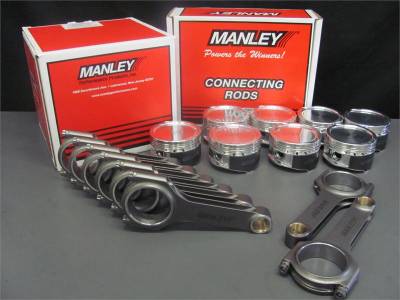

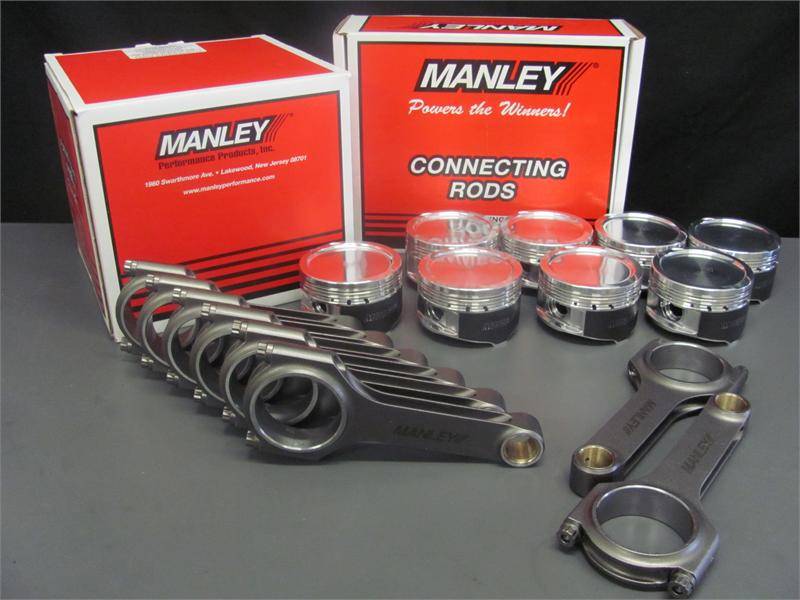

5.0L Coyote Manley Pistons / Manley H-Beam Connecting Rods Combo

EXC-13308
Includes Manley Exclusive Total Seal AP Steel Ring Set
Pricing: $1,399.00

Customize Your Item

- Select Bore -
 * required
- Select Piston Volume -
 * required
- Select Wrist Pins -
 * required
- Upgrade to ARP 2000 Rod Bolts? -
 * required
- Add Rod Bearings? -
 * required
Qty:

Description

  • Manley 5.0L Coyote Forged 2618 Alloy Pistons
    • Standard, .005" or .010" Over Bore
    • Moly Coated Skirts
    • Premium 4130 Chrome Moly Wrist Pins with Spiro Locks
    • 1.2mm x 1.2mm x 3mm Ring Package
  • Manley Exclusive Total Seal AP Steel Piston Ring Set
  • Manley Forged 4340 H-Beam Connecting Rods
    • 3/8" ARP 8740 Cap Screws
Compression Ratios
     57cc 4V
 +6.75cc Dome   11.5:1
 -2.5cc Flat Top   10.0:1
-12.0cc Dish  9.0:1

Options:
  • Upgrade to ARP 2000 Rod Bolts - Recommended for 800+ HP
  • Upgrade to 9310 Alloy Wrist Pins - Recommended for 800+ HP
  • Add Clevite 77 H-Series Rod Bearings
  • Add Calico Coated Clevite 77 H-Series Rod Bearings
This 5.0L Piston and Rod Kit is the perfect upgrade for 2011+ 5.0L Coyote Engines up to 1000 HP. With an already strong crankshaft, a good set of Pistons and Rods is all this engine needs. This Kit includes Manley 5.0L Coyote Platinum Series Pistons with your choice of Dish, Dome or Flat Top. The included Piston Ring Set is a Manley Exclusive Total Seal Ring Set designed specifically for these pistons with a 1.2mm x 1.2mm x 3mm Ring Stack. This Piston Ring Set features a AP Steel Chromium Nitrided Top Ring to handle extreme amounts of boost and / or nitrous. We recommend upgrading to ARP 2000 Rod Bolts and H-13 Tool Steel or 9310 Alloy Wrist Pins at the 800HP mark.

We also offer Internal Balancing. Send us your crankshaft and we will balance your entire assembly. Please call for details.

Details

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W12.0000” x H12.0000” x L24.0000”
