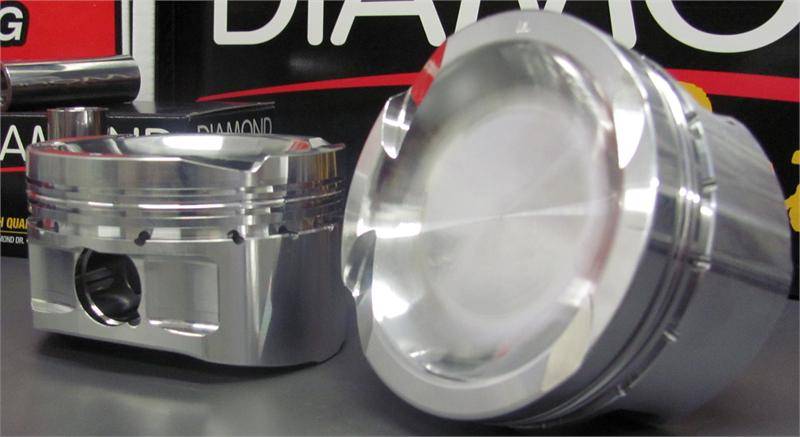

Custom Diamond 5.4L Specific Pistons, -5.2cc Dish - .030" Over Bore

DRP-C3001554
Includes 4130 Chrome Moly Wrist Pins and Double Spiro Locks.
Pricing: $789.99

Customize Your Item

- Select Valve Reliefs -
 * required
- Select Wrist Pins -
 * required
- Select Piston Coating Options -
 * required
- Add Lateral Gas Ports -
 * required
Qty:

Description



 -5.2cc Dish , 3.582" Bore
  2V PI - 42.5cc     3V - 51cc      4V - 52cc
 13.81:1 12.06:1 11.89:1
*Compression Ratios are Calculated for a 4.165" Stroke, .008" Deck Clearance, and 3.650" Bore / .027" Thick Head Gaskets.

  • 2618 Alloy-Designed for Forced Induction and Nitrous Applications
  • Offset Wrist Pins for Quiet Operation
  • 3.572" Bore / 1.330" Compression Height
  • Minimum .220 Underhead Thickness
  • .275 Down Top Ring
  • Premium 4130 Wrist Pins Included
  • 1.5mm x 1.5mm x 3mm Ring Stack
  • Available with 2V, 3V or 4V Valve Pockets

  • Moly Skirt Coating
  • Ceramic Dome Coating
  • Hard Anodized Coating
  • Double Diamond Coating (Hard Anodized and Moly Skirt)
  • 4130 Coated Wrist Pins 0.155" Wall
  • H-13 Tool Steel Wrist Pins 0.155" Wall
  • H-13 Tool Steel Wrist Pins 0.200" Wall
  • H-13 Tool Steel Coated Wrist Pins 0.155" Wall
  • H-13 Tool Steel Coated Wrist Pins 0.200" Wall
  • 9310 Endurance Alloy Wrist Pins 0.155" Wall
Recommended Piston Ring Set- 09063582

Specifications

Part Number  C3001554
Bore  3.582"
Stroke  4.165"
Rod Length  6.657"
Compression Height   1.330"
Wrist Pin  .866" x 2.500"
Top Ring Down  .275"
Piston Material  2618 Alloy
Piston Style  Dish
Volume  -5.2.0cc
Ring Stack  1.5mm x 1.5mm x 3mm



Compression Ratios

Compression Ratios are Calculated for a 4.165" Stroke,
.008" Deck Clearance and 3.630" Bore / .036" Thick Head Gasket

 2V PI 42cc    2V NPI  / 3V 51cc    4V 52cc
13.6:1  11.8:1  11.6:1



Details

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
  • W12.0000” x H4.0000” x L18.0000”
