MHS 2V PI Romeo Stage 3 CNC Ported Head / Cam Combo

MHS-2VPI-STG3-C
Stage 3 CNC Ported Heads plus Any MHS 2V PI Bullet Cams, Camshaft Sprockets, Spacers, Washers and Bolts, Cleaned and Inspected Followers, New OEM Lash Adjusters, +1mm Oversize Stainless Steel Valves, Camshaft Degree and TFS Adjustable Crank Gears.
Pricing: $3,049.00

Customize Your Item

- Select Cylinder Head Cores -
 * required
- Select Valve Springs -
 * required
- Select Valves -
 * required
- Upgrade to Ford GT Followers -
 * required
- Select Camshafts -
 * required
Qty:

Description

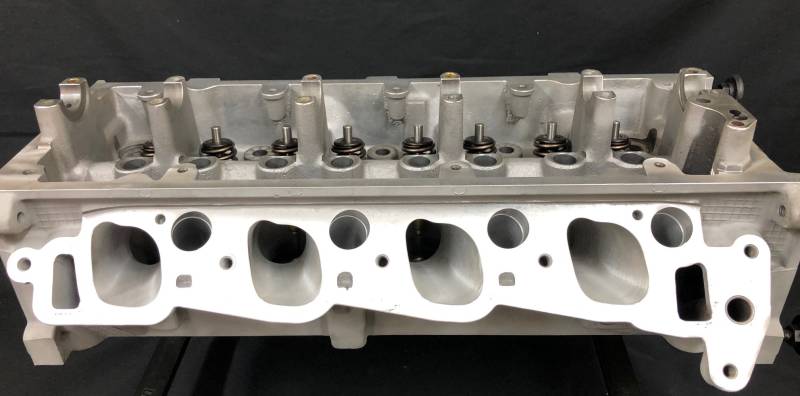

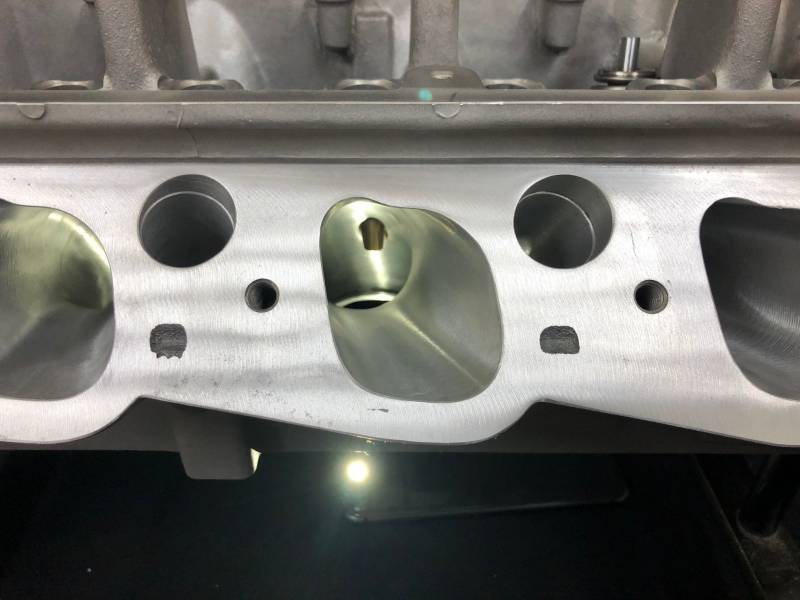

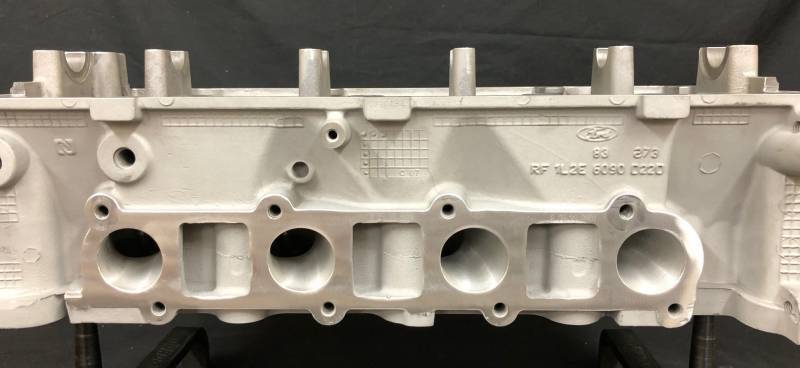

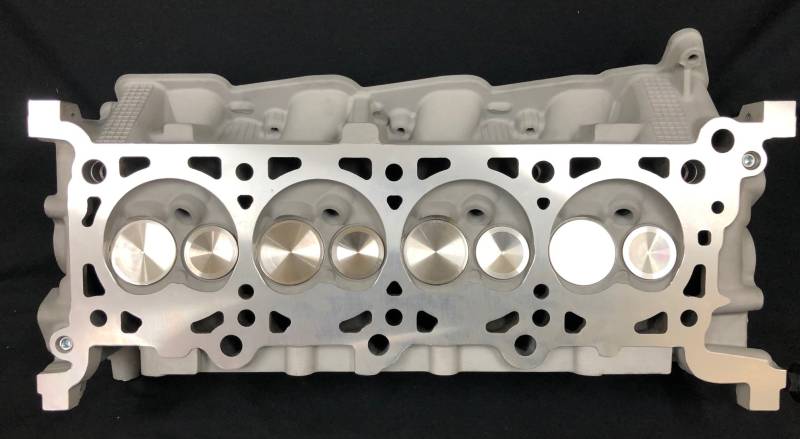

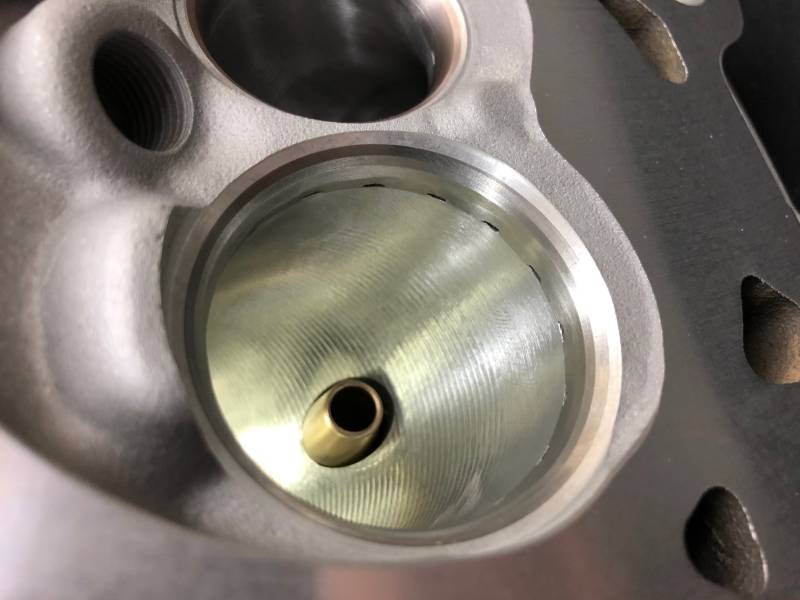

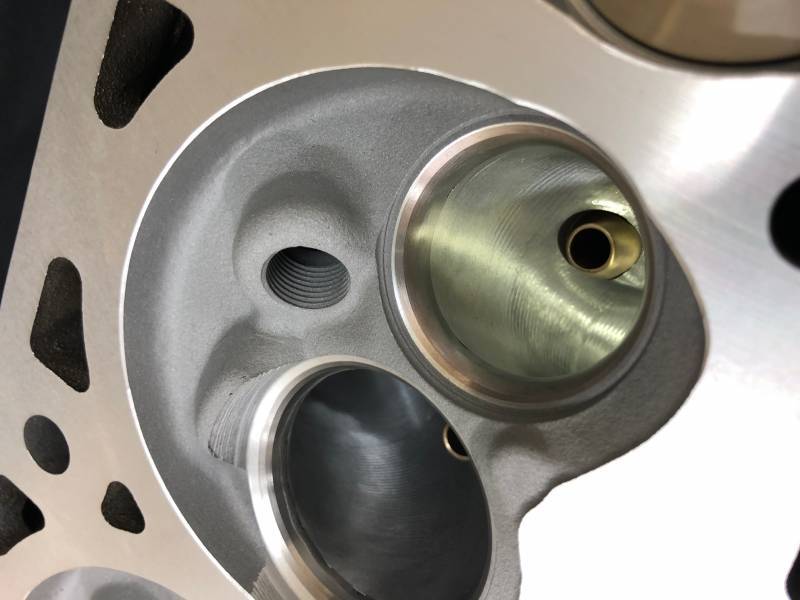

     The MHS Stage 3 CNC Ported PI Heads are a great mix between High Performance Street and Full Race. We start with Late Model 8 Thread Cores, apply our Stage 3 CNC Porting, Hand Blend the Bowls to the Valve Seats, Install our Custom Tapered Nose Bronze Valve Guides, Hone the Guides to Size and Perform our Trick 5 Angle Valve Job. The Stage 3 Valve Job also clearances shrouding areas in the combustion chamber for even more flow. We then Install our Viton Valve Stem Seals, +1mm Stainless Steel Valves and Your choice of our Stage 2 or Stage 3 Valve Springs with our Titanium Retainers.

Intake Flow - 227 CFM / Exhaust Flow - 202 CFM

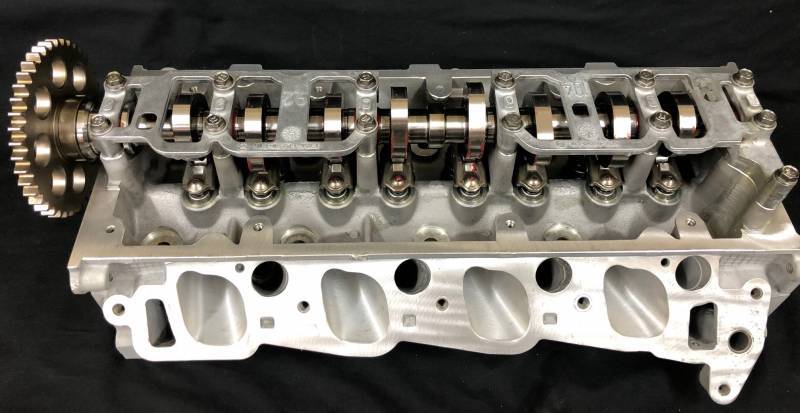

     The Combo Package includes any set of MHS / Bullet 2V PI Camshafts, Camshaft Sprockets, Spacers, Washers and New OEM Camshaft Bolts, Cleaned and Inspected Followers, New OEM Lash Adjusters, Camshaft Degree Service, TFS Billet Adjustable Crank Gears and Full Assembly. Ready to Bolt on!

     Simply Select the Camshafts you would like from the Drop Down Menu. All Camshafts will fit with Stock Pistons / Pistons without Valve Reliefs unless otherwise stated. If you need help selecting a set of Camshafts for your combo, please Contact Us for suggestions. Be sure to let us know all your modifications including intake manifold, exhaust system, ect.

Includes:

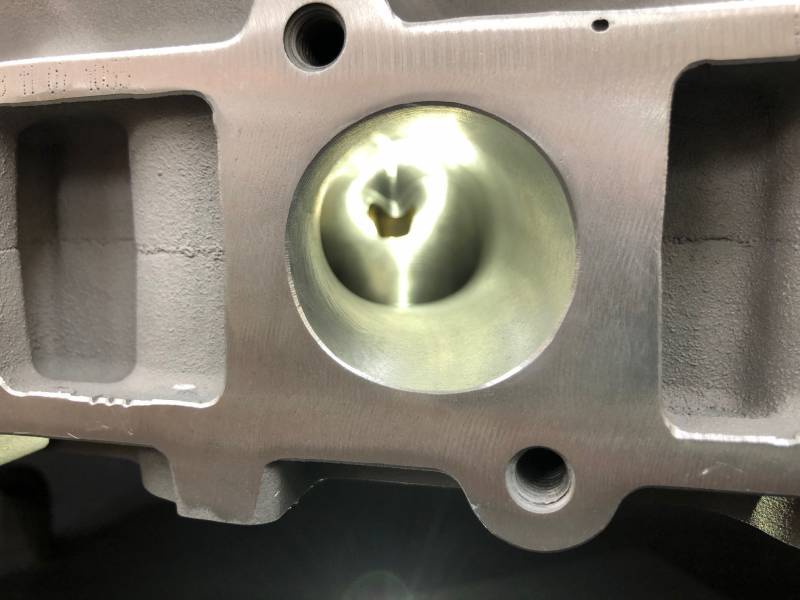

  • Stage 3 CNC Porting with Hand Blended Bowls to Valve Seats
  • Bronze Valve Guides Installed
  • Performance 5 Angle Valve Job - Chamber Clearancing
  • +1mm Oversize Stainless Steel Valves
  • Stage 2 PAC Valve Springs or Stage 3 Boost Springs
  • Titanium Retainers
  • Viton Valve Seals
  • Brass Freeze Plugs
  • CBN Surfacing for MLS Gaskets
  • Any Set of MHS / Bullet Camshafts
  • Camshaft Sprockets, Spacers, Washers and New Camshaft Bolts
  • Cleaned and Inspected Followers
  • Rebuilt Lash Adjusters
  • Modified Intake Valves (For Extra PTV Clearance)
  • Camshaft Degree
  • TFS Billet Adjustable Crank Gears
  • Full Assembly



Details

  • MHS-2VPI-STG3-C
  • MHS-2VPI-STG3-C
  • Modular Head Shop
  • New

Shipping Information

  • Item Requires Shipping
  • 40.0 lbs.
  • W24.0000” x H12.0000” x L12.0000”
